适用于井下或地面开采的金属矿山沿地下巷道及地面工作场地运输矿石或其他物类

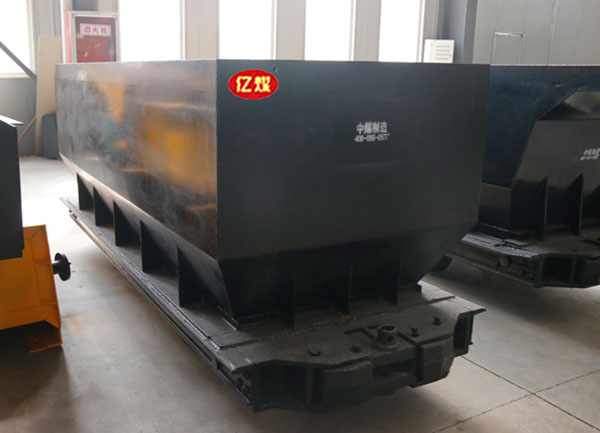

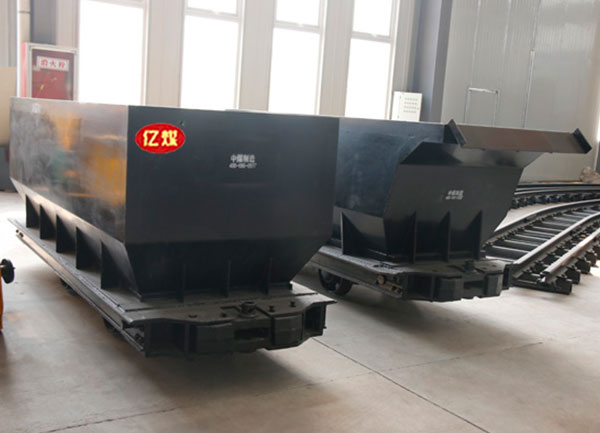

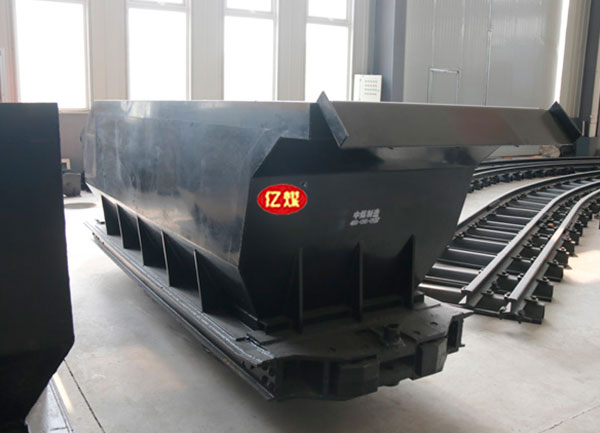

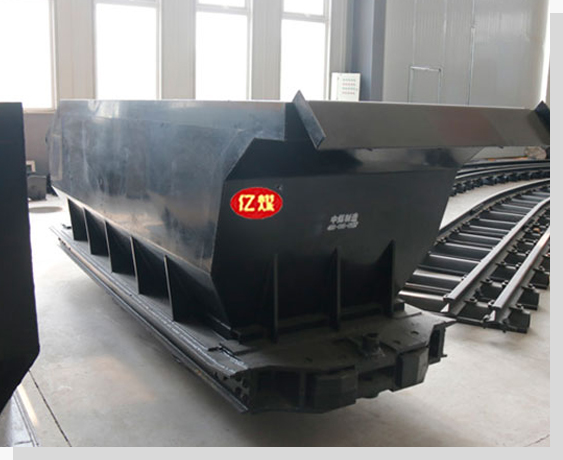

MDC2.2-6B底卸式矿车适用于井下或地面开采的金属矿山(或矿石性质及开采方式与其相类似的其他矿山)沿地下巷道及地面工作场地运输矿石或其他物类。
MDC2.2-6B底卸式矿车有运行平稳,坚固耐用,维修方便,卸载速度高等特点。

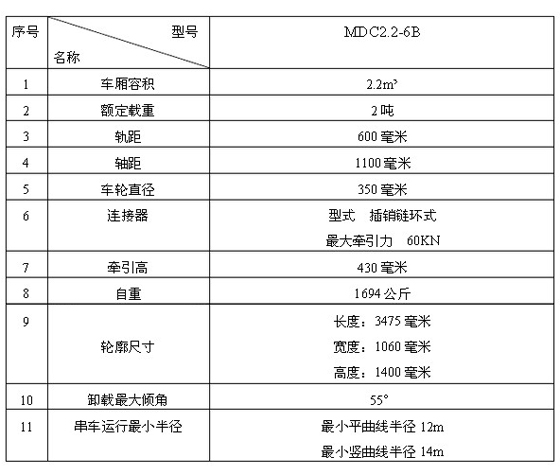

| 型号 | MDC2.2-6B |
| 车厢容积 | 2.2m3 |
| 额定载重 | 2吨 |
| 轨距 | 600 mm |
| 轴距 | 1100mm |
| 车轮直径 | 350 mm |
| 连接器 | 型式 插销链环式 |
| 牵引力 | 60KN |
| 牵引高 | 430 mm |
| 自重 | 1694kg |
| 轮廓尺寸 | 长度:3475 mm 宽度:1060 mm 高度:1400 mm |
| 卸载倾角 | 55° |
| 串车运行半径 | 平曲线半径 12m 竖曲线半径 14m |
因产品生产批次、具体型号不同,以上参数仅供参考详情可联系我们的销售人员进行具体核实。



MDC2.2-6B底卸式矿车适用于井下或地面开采的金属矿山沿地下巷道及地面工作场地运输矿石或其他物类。

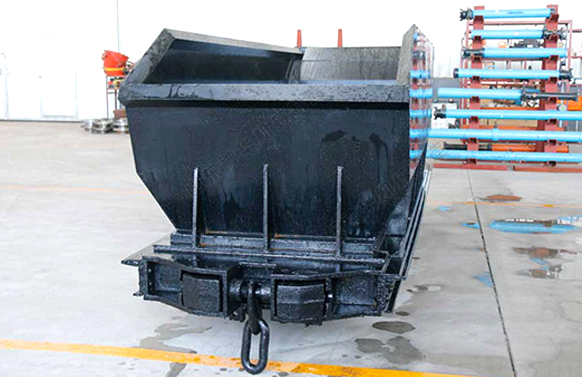

Bottom dump mining car is an ideal equipment for modern large andmedium-sized coal mine coal transportation, with a large transportation capacity

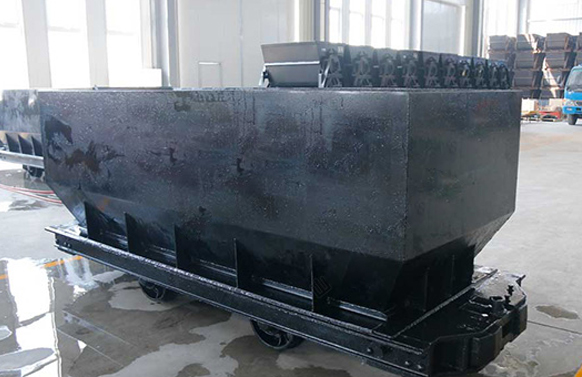

MDC2.2-6B底卸式矿车运行平稳,坚固耐用,维修方便,卸载速度高等特点。

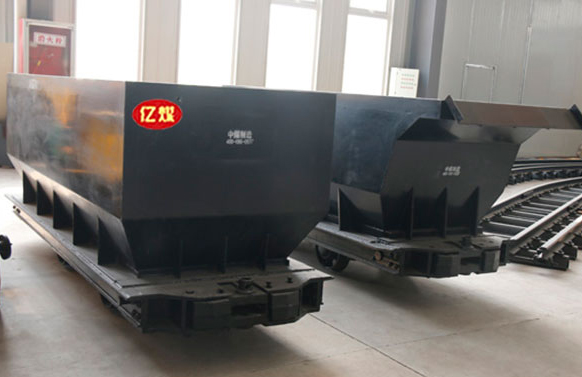

When the bottom unloading mine car reaches the curved track, it uses the unloading wheel to open the bottom door to achieve fast and automatic coal unloading
MDC2.2-6B底卸式矿车有运行平稳对电机车和牵引车冲击力小,坚固耐用,维修方便,卸载速度高等特点。
Bottom dump mining cars have the advantages of stable operation, low impact on electric locomotives and tractors, durability, easy maintenance, and high unloading speed
MDC2.2-6B底卸式矿车适用于各种煤质的平巷运输。
Bottom dump mining trucks are suitable for transporting various types of coal in flat tunnels1、矿车在使用前,各转动轮加足油脂,各转动部位加油或油脂后,才可投入运行。
2、使用过程中,矿车所受的负荷不准超过规定的数值。
3、装卸货物的过程中尽量避免撞击和砸等有损矿车的人为行为发生,进而保护车体的正常使用。
4、缓冲和联接装置发生故障时禁止工作。
5、禁止矿车刚碰头相互接触。
6、橡胶弹簧损坏,车架在震动时刚性地冲撞轮轴时,禁止使用以免损坏车轴。
7、当矿车轨道变形时应及时调整,否则矿车轮对易损,运输过程中容易跳道。
