我们的品质在这里得到见证





| 名称 | 矿用防爆柴油机钢轮普轨机车 | 制动方式 | 机械制动 |
| 型号 | CCG5/600 | 起动方式 | 手摇启动/电启动 |
| 轴距 | 865mm | 连接方式 | 皮带连接 |
| 轨距 | 600mm | 净化方式 | 二级过滤 |
| 小转弯半径 | 6m | 柴油机型号 | FX1125 |
| 牵引高度 | 230 320 mm | 柴油机功率 | 13kw |
| 牵引方式 | 插销连接 | 牵引力 | ≥9KN |
| 变速方式 | 机械变速 | 牵引吨位 | 40t(坡度<3‰) |
| 牵引速度 | 前行/后行3/7/10(km/h) | 机车重量 | 6000kg |
| 外形尺寸 | 3300×1000×1600 mm长×宽×高 | ||
因产品生产批次、具体型号不同,以上参数仅供参考,详情可联系我们的销售人员进行具体核实!

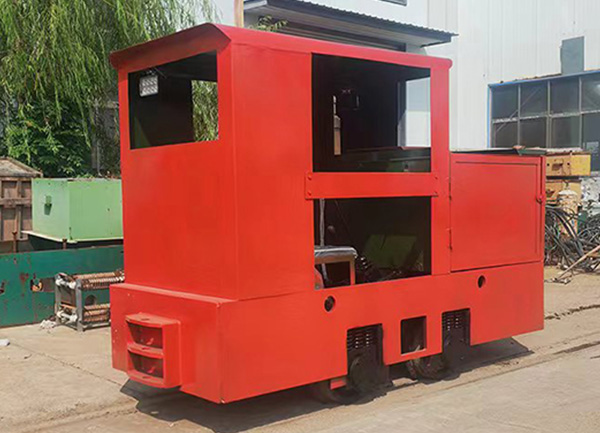

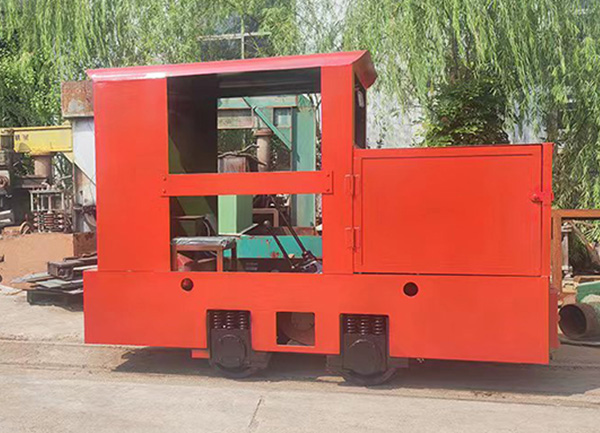

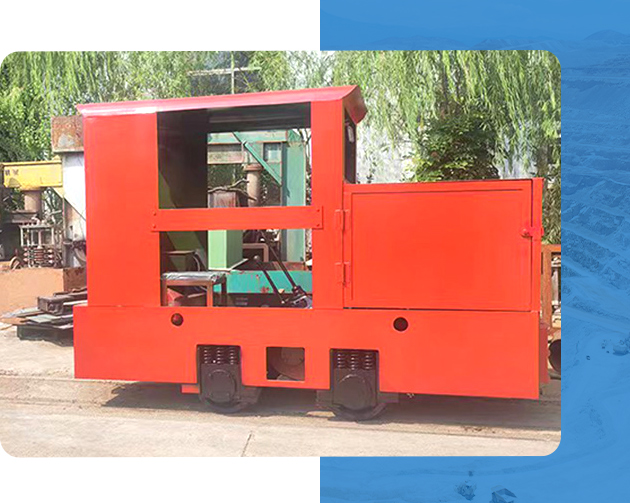

CCG防爆柴油机车是以防爆柴油机为动力的轨道式中小型牵引车。具有灵活、操作方便、工作舒服、费用低、劳动强度低等特点。CCG防爆柴油机车配有废气净化装置良好的工作环境。
坚固耐用操作方便安全可靠

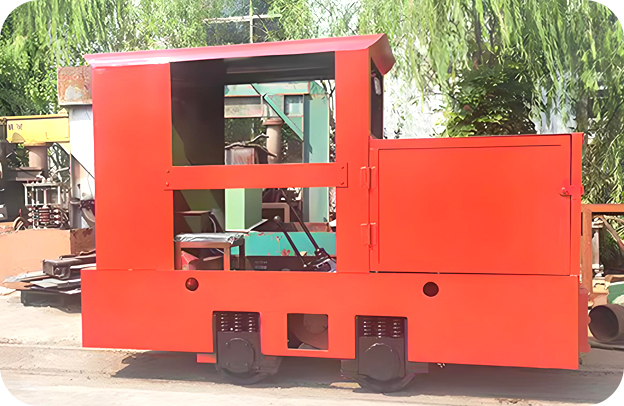

CCG防爆柴油机车造型为“凸”型结构, 稳重,有力。
The CCG explosion-proof diesel locomotive is designed with a "convex" structure, which gives it a stable and powerful appearance.

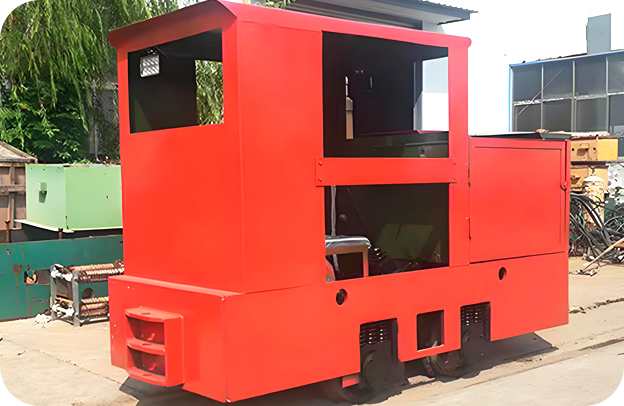

CCG防爆柴油机车驾驶操控室位于整机 中间位置,视野开阔,安全性高。
The driving control room of the CCG explosion-proof diesel locomotive is located in the middle of the entire machine, with a wide field of vision and high safety

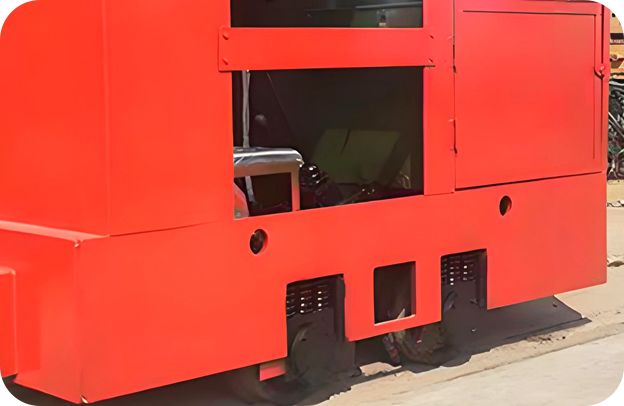

CCG防爆柴油机车钳盘式气助力行车制动 系统,操纵轻便,制动力大
CCG explosion-proof diesel locomotive caliper disc air-assisted service brake system features easy operation and strong braking force

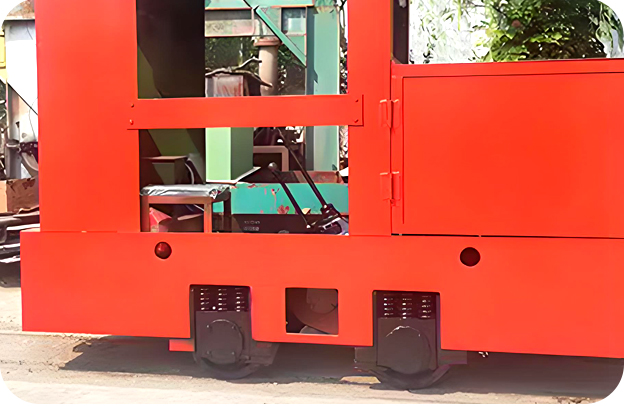

CCG防爆柴油机车撒砂系统气操纵结构,操纵轻便,工作可靠。
The pneumatic control structure of the sanding system for the CCG explosion-proof diesel locomotive, Easy to operate and reliable in performance.
